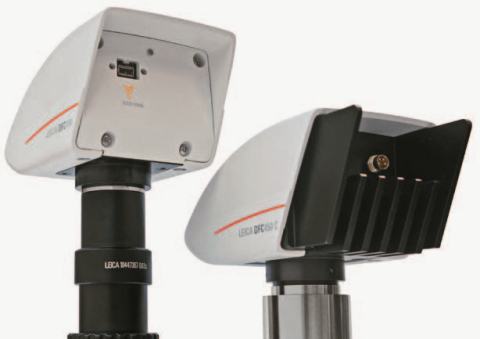

德国莱卡DFC450、DFC450C(冷却功能)数码摄像头、CCD相机

主要特点:500万有效像素、2/3" sony ICX282 CCD 、像元尺寸3.4 μm x 3.4 μm 、36bit 彩色深度
  • 产品简介
  • 技术参数
  • 可选配件

Leica DFC450、DFC450C highlights:

◇ Fast (18fps) and large (1280×960 pixel) live image for fast focusing and positioning of the specimen.

◇ High quality 5-megapixel CCD for brilliant captured images.

◇ Wide range of exposure times to match all types of illuminations and contrast techniques.

◇ Freely defined region of interest for fastest live image update and precise focus position (ZoomFocus).

◇ Standard hardware interface for easy and quick connection to all microscopes (c-mount, FireWire-B).

◇ Powerful software and intuitive user interface for convenient image capture and processing functions.

◇ Complete camera kit with camera head, Firewire cables and Firewire PCexpress board for easy installation to PC.









Leica DFC450、DFC450C Technical Data:

Digital camera Leica DFC450 / DFC450C Technical Data
Number of pixels 5.0 megapixel, 2560×1920
Camera type Digital camera for microscopy with control software
Sensor interline transfer frame readout CCD – ICX282
Cooling Leica DFC450: not available
Cooling Leica DFC450C: Δ –20° compared to ambient
Image formats Leica DFC450:2560×1920 9fps, 1280*960 18fps, 640*480 30fps
Image formats Leica DFC450C: 2560×1920 4.5fps, 1280*960 8.2fps, 640*480 15fps
Pixel size 3.4 μm x 3.4 μm
Color depth 36Bit
A/D converter 12Bit
Dynamic range > 59 dB / > 900:1 dB
Exposure Time Leica DFC450: 1msec~60sec
Exposure Time Leica DFC450C: 1msec~600sec
Region of interest Freely adjustable in 2 pixels steps from 2 × 2 up to full resolution
Recommended video adapter 0.63X or 0.7X
Color filter RGB Bayer Mosaic
Shutter control Electronic global shutter / 2 frames interlaced readout
Protective filter Removable dust protection, UV/IR filter
Data Single cable FireWire – IEEE1394B 9-pin
Power supply via FireWire cable
