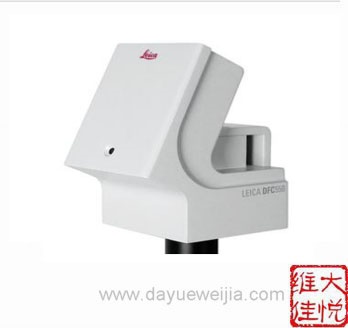

德国莱卡DFC550（冷却功能）数码摄像头、CCD相机

DFC550 digital camera offers excellent color reproduction and the highest resolution for all light micro- scope related contrast methods. Superior image quality and high flexibility are the outstanding features of this camera. With its high precision Micro scanning and Co-site Color Sampling, the hermetically sealed, thermoelectrically cooled.1.4 megapixel color sensor generates an image resolution of up to 12.5 mega pixels in true colors. The Leica DFC550 offers a high dynamic range at an excellent signal-to-noise ratio. The camera delivers precisely detailed digitized images, 14-bit per color channel. The sensor’s selectable read out, 24.6 MHz for fast live mode and fast image rates of 12.3 MHz for more image data, combine an optimum workflow and top image quality in a single camera. Robust and reliable interfaces such as FireWire-B and C-mount offer easy adaptation of the Leica DFC550 to all current microscopes and PC’s.





◇ High quality 5-megapixel CCD for brilliant captured images.

◇ Many user selectable resolutions – from super fast 5×5 binning up to 12.5 Mpixel multishot mode to suit all imaging requirements.

◇Co-site Color Sampling and sub sample readout modes – no color interpolation required – for fast and absolutely clean true color images without moiré artifacts.

◇ Sensitive Sony CCD color sensor with high precision piezo micro scanner – to capture the subtlest structures and color shades.

◇ Single FireWire-B connection for data and power – for ease of use and simple installation.

◇ Complete camera kit with FireWire-B-B cable and FireWire-B board –no need for additional computer accessory (optional notebook kit available).

◇ mproved color calibration and color rendering – for the most demanding applications in industry and life science when the highest color quality is needed.

◇ Active peltier cooling system with sealed sensor chamber and fan – to ensure the same image quality even with long exposure times.

◇ New low light image noise detection and reduction algorithm – to further reduce noise in the live image at low illumination levels

◇ High Dynamic Range (HDR) Mode in LAS – to capture more details in delicate or challenging samples.

◇ Easy and standard camera control panels – to concentrate on sample setup and for the best focus position.





Leica Digital camera DFC550 Technical Details
Housing	Aluminum die cast
Size	(L × W × H) 157 mm × 93 mm × 123 mm
Exposure	0.25 milliseconds – 600 seconds
Live image	On computer screen
Cooling	Active (Peltier cooling), fan
External manual trigge	Present
Flash synchronization	Present
Shading correction	Present
Recommended Agents	www.dayueweijia.com
ccd sensor	2/3" – CCD ICX285AQ Progressive scan
Sensitive surface	8.8 mm × 6.6 mm
Pixel size	6.45 μm × 6.45 μm
Number of pixels	1360 pixels × 1024 pixels, 1.4 Mpixels
Total pixels (highest resolution)	4080 pixels × 3072 pixels, 12.5 Mpixels
Color filter	RGB Bayer
Signal-to-noise ratio	2050:1; 67 dB (at 24.6 MHz readout clock)
AD converter	14-bit
Protective filter	Hoya C-500S
Binning mode	3 × 3, 5 × 5
Analogue gain	1X –  8X
Optical	C-Mount
data	EEE 1394b FireWire 9-pin single cable
Recommended video adapter	0.7 x、0.63X
